500KG/H Peanut Roasting Chopping Production Line Factory Price

This peanut roasting chopping production line is suitable for all kinds of nuts and legumes and has a very wide range of applications. Mainly used for peanuts, almonds, cashews, hazelnuts, soybeans, cocoa beans, melon seeds, nuts, wheat, bar

Get Price
Send Email
Features

Application Range of the Peanut Roasting Chopping Production Line:

This peanut roasting chopping production line is suitable for all kinds of nuts and legumes and has a very wide range of applications. Mainly used for peanuts, almonds, cashews, hazelnuts, soybeans, cocoa beans, melon seeds, nuts, wheat, barley, oats and other granular materials.

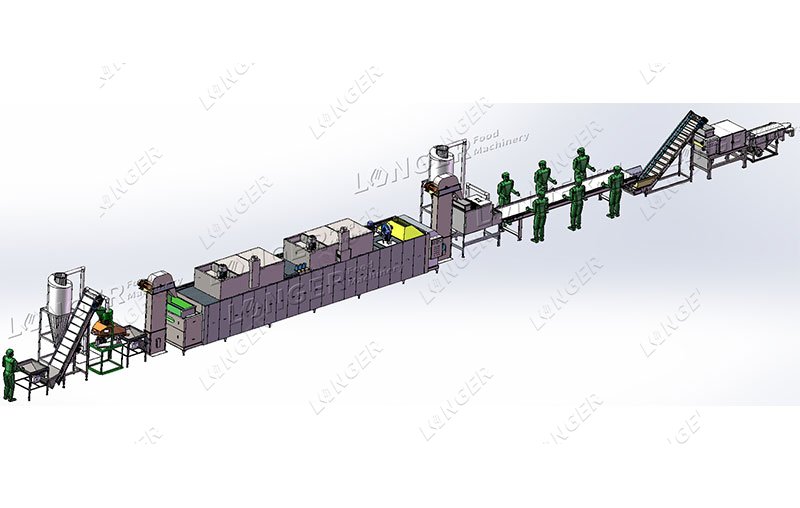

Peanut Chopping Production Line

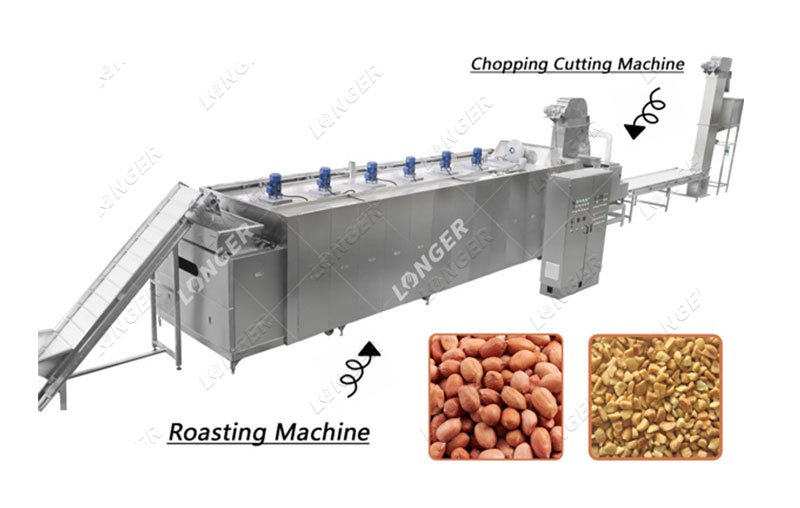

Introduction of Peanut Roasting Chopping Line:

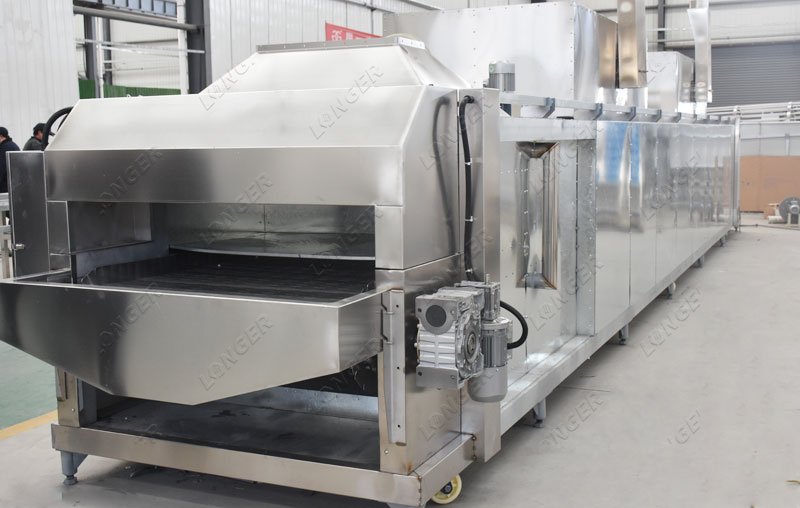

♦ Peanut Roasting Machine
The roasting machine has roasting and cooling functions and is suitable for continuous production. It consists of a heating system, a cooling system, and a transmission system. The temperature controller can realize automatic temperature control, and the roasted peanuts are uniform in color and without damage.

♦ Peanut Peeling Machine
The roasted and cooled peanuts go to the peeler. The peanut is divided into half by the extrusion of two rubber rollers and differential rubbing, the fan separates the detached red skin and sieves out the germ, and the peanut crushed is discharged from the feeding port.

♦ Picking Belt
Manual sorting. Unpeeled peanuts, minor defects, damaged peanuts, and debris will be sorted out.

♦ Peanut Chopping Line
The whole set of equipment consists of the elevator, a peanut chopper, and a screening machine. The cut peanuts have a uniform particle size, beautiful appearance, less material consumption, and the particle size can be adjusted, which can usually be divided into three or four grades. The size of the screen can be customized according to customer requirements.

The peanut roasting chopping production line test video:
rame allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen="" frameborder="0" height="315" src="https://www.youtube.com/embed/a74DkgrOMTA?si=wgSgUrARt-P_kL0P" title="YouTube video player" width="560">rame>

Technical Data
No. Name Power(kw) Dimension(mm)
1 Lifting Machine 0.75 Height:2000mm
2 Roasting and Cooling Machine 4.4kw
Gas Consumption: 10-12KG/H		 8500*2250*2600
3 Lifting Machine 0.75 Height:2000mm
4 Peeling Machine 1.5+0.75 1800*750*1300
5 Picking Belt(4m) 0.75 4000*700*1000
6 Peanut Chopping Machine 3.7 2080*1000*1700
7 Vibrating Screen 0.36 2400*1120*1020
